Proud to Be the Authorized Distributor &
Partner of Millivolt
Bringing You Affordable, Superior Quality Products with Advanced German Technology.
Millivolt is an innovative company offering products and services related to measurement, control, and regulation technology, as well as process control software for the heat treatment industry.
Quality
Millivolt ensures the highest quality standards by conducting all quality-relevant processes and production steps in-house, automating them as much as possible. Every product is 100% checked before shipping.
Your Benefit
A high level of vertical integration, production-optimized design, and a high degree of automation allow us to offer products at attractive prices.
As the authorized dealer and partner of Millivolt in India, S.R. Thermal Solution is committed to bringing these high-quality, advanced German technology products to our customers.
SSN 01
Oxygen Probe for Nitriding-and Nitrocarburizing Processes
- Oxygen probe for determining nitriding and nitrocarburizing atmospheres as a supplement to Hydrogen sensor H2S and the sensor module SM01
- Vacuum-tight design, suitable for evacuatable furnaces
- Supplied with test certificate both for new device and after maintenance
- In different lengths between 500mm and 900mm available
H2S
Hydrogen Sensor for Nitriding and Nitrocarbuirizing Processes
- Measurement principle: Thermal Conductivity
- Measurement block temperature: 100 °C to avoid Ammonium Carbonate Precipitation and Condensation
- Measurement range: 0 … 100 % H2:N2
- Accuracy: +/- 0.5 % of measurement +/- 0.25 % of end value independent of ambient temperature influence (heated measuring electronics)
SM 01 Sensor Module
with C level calculation with online carbon diffusion calculation with KN / KC / KO calculation with dew point calculation
- Sensor module for DIN rail mounting
- Available in different versions: - As a module for connecting an oxygen probe - for carburizing processes with C-level - calculation and carbon online diffusion calculation with target size control - for gas nitriding and nitrocarburizing processes with KN / KC / KO calculation - for annealing processes with dew point calculation (down to -120 ° C)
- Supply 24V DC, max. 100mA
- Easy integration into any automation environment possible

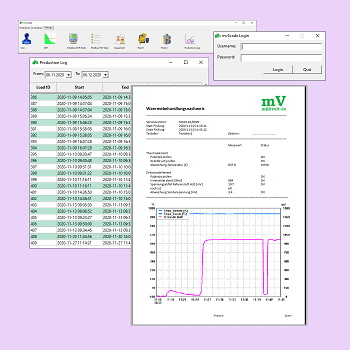

mV SCADA
Process Control Software for Heat Treatment
- Plant Visualization, Process Documentation and Alarm Handling.
- Any number of furnaces and furnace lines can be connected.
- Based on a modern open source database system.
- Consists of server components for field communication, process management, system control and connection to higher-level systems and operating software.
- Runs under MS Windows, Linux and Mac OS
- User management for the activation of functions, login with user name and password.

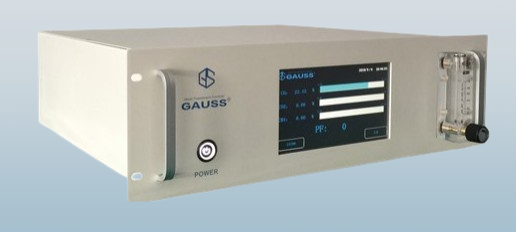

FFA
Gas Analyzer
- Measurement of CO / CO2 / CH4 content, calculation of carbon potential
-
Measurement of different atmospheres:
- Endo gas
- Nitrogen/Methanol
- dissociated Methanol
- Supercarb - Sintering– and annealing atmospheres - Scale: CO: 0-35.00%; CO2: 0-2.00%; CH4: 0-15% (other possible)
- Accuracy: CO: ±0.35% ; CO2: ±0.01%; CH4: ±0.15%
- three level filters to insure sample gas quality
- Comfortable 7" touch display
SSK01
Oxygen probe for Carburizing processes
- Robust reliable oxygen probe also for most difficult applications like high temperatures and high carbon levels
- consistently modular design
- Maintenance by the manufacturer but also by the user self possible
- low cost of ownership based on long lifespan
- mechanical cleaning mechanism to minimize drift and increase the life time between maintenance
- Supplied with test certificate for both new probe and probe after maintenance
Digital Mass Flow Controller Model F4Q
High-speed response, low pressure loss, high accuracy, and a wealth of functions
- Do not use the product for gas that is within its explosive limits. Doing so may result in an explosion
- If an abnormality in the controller is likely to result in damage, an appropriate redundant design should be used.
- If there is a possibility of foreign matter entering the device, install an upstream filter, strainer, or mist trap capable of eliminating foreign matter 0.1 μm or greater in diameter, and be sure to periodically inspect and replace the filter
-
When the device is used to control the air-to-fuel ratio of a burner, implement measures in the instrumentation to prevent backfires from occurring and to prevent a backfire from affecting the device if one does occur.
Increased pressure or flames in the piping due to a backfire from a burner can cause device failure
Mass Flow Meters / Mass Flow Controllers
Oxygen probe for Carburizing processes
- High speed 2 ms response
- Very low age deterioration High repeatability
- Symmetric structure measures reverse flow as well.
- Wide 300 : 1 range
- Mass flow measurement withoutthe need to compensate forchanges in temperature and pressure
- Proven reliability in 4.5 Million actual applications
